Tranqui

Preface

Tranqui is a multi-tenant Transport CRM I designed and built end to end — backend and frontend — for fleet operators who need one place to run vehicles, clients, rents (noleggi), teams, documents, and billing.

The product is not a CRUD demo. It is a SaaS-shaped system: companies (tenants) with optional sub-companies, role-based access, team-scoped data, subscription lifecycle via Stripe, and a staging environment that mirrors how I would ship a real startup.

I treated the role as startup CTO: decide the boundaries first, keep the domain honest, and make the boring reliability pieces (auth refresh, webhook idempotency, tenant isolation) non-negotiable.

Tranqui staging app

https://staging-app.tranqui.io

tranqui-org on GitHub

https://github.com/tranqui-org

The problem

Transport operators already live in spreadsheets, WhatsApp threads, and a pile of single-purpose tools. What they need looks simple on a slide — “manage the fleet” — and gets hard in production:

• Many companies, one product — isolation between tenants, plus parent companies that must see child companies
• People are not flat roles — admins, supervisors, drivers, secretaries; permissions must change without forcing everyone to re-login
• Teams matter — not every user should see every vehicle or rent
• Money fails loudly — Stripe webhooks retry; you cannot double-apply an invoice event
• Ops UI must stay fast — stale JWTs kill trust; refresh has to be invisible

Tranqui is my answer to that shape: a Clean Architecture API and a Next.js ops console, wired for tenancy, RBAC, and billing from day one.

Product preview

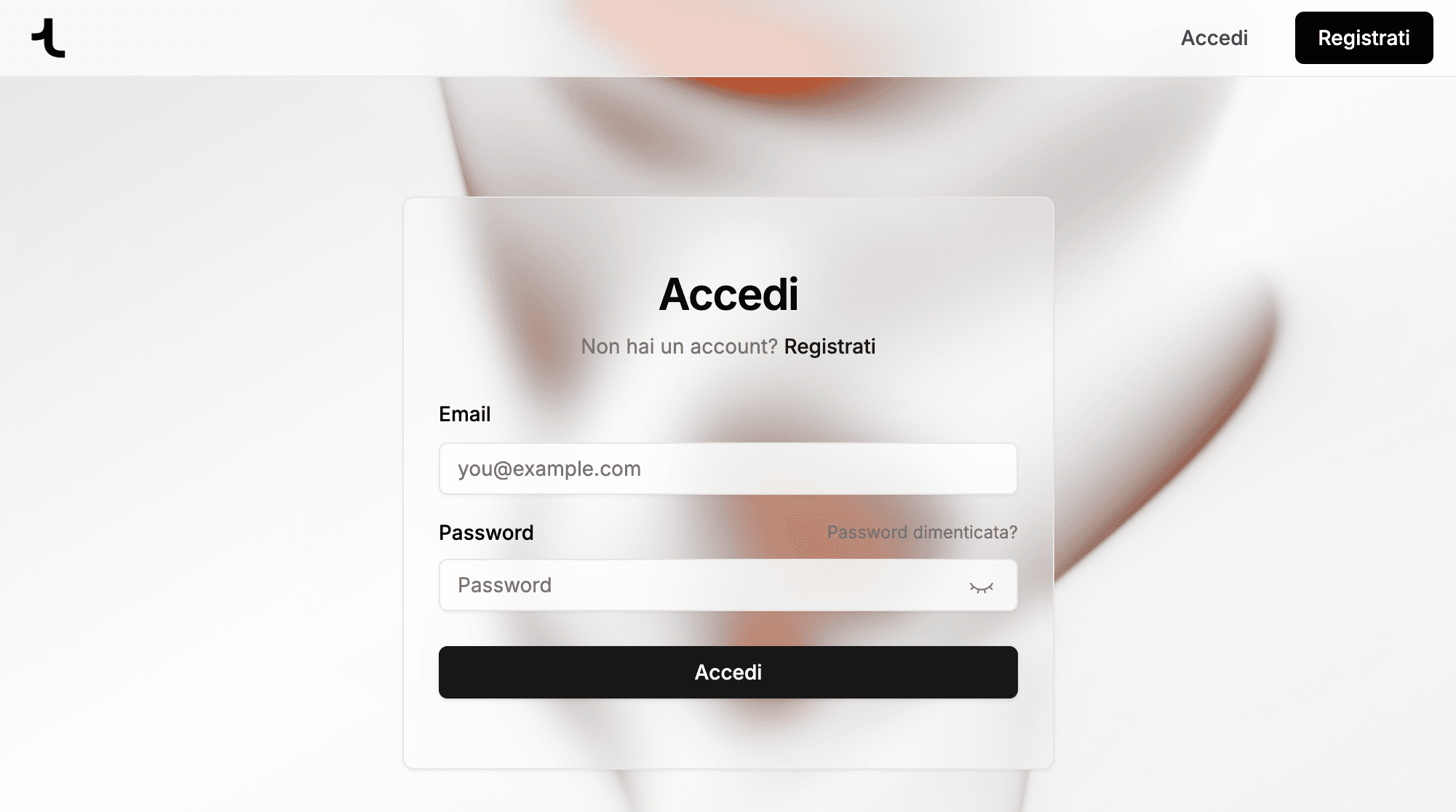

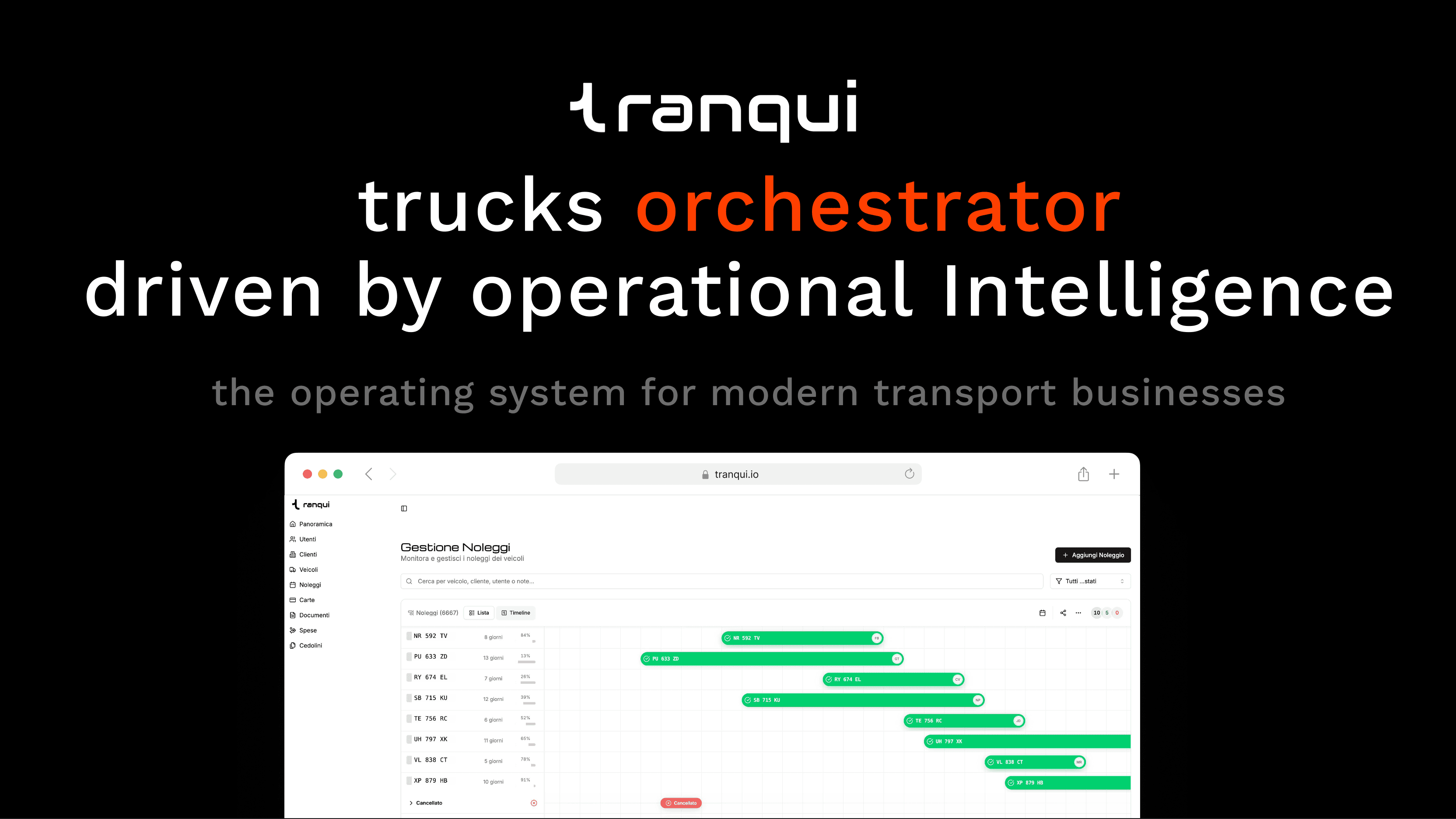

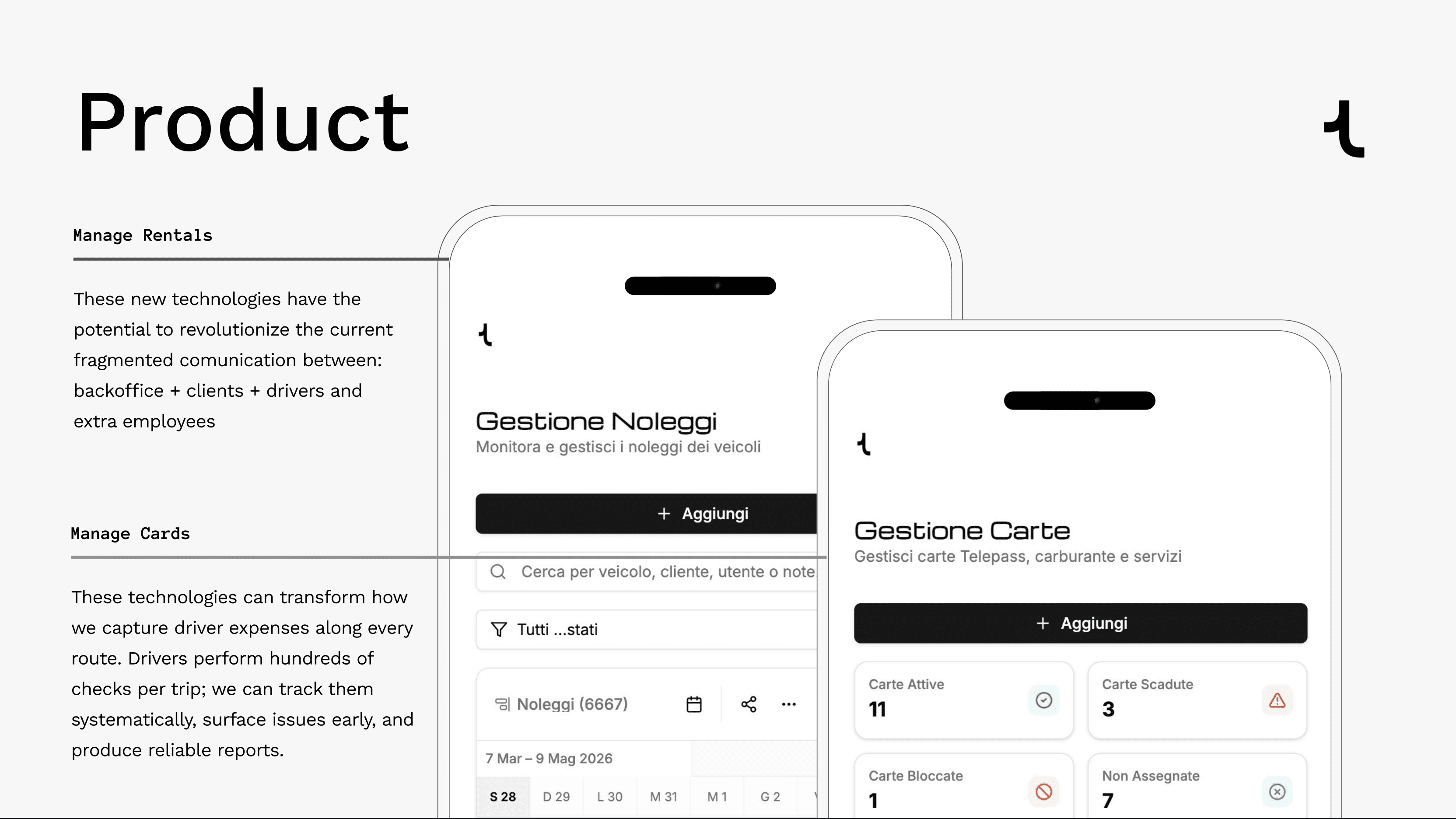

Ops console for modern transport businesses — rents on a vehicle timeline, fleet cards, and mobile surfaces for backoffice + drivers. Staging auth is the door in; the product is what happens after.

Design decisions

I did not optimize for “most frameworks.” I optimized for clear ownership and safe defaults.

Architecture

Two repositories, one system. The API owns invariants; the web app owns workflows and presentation.

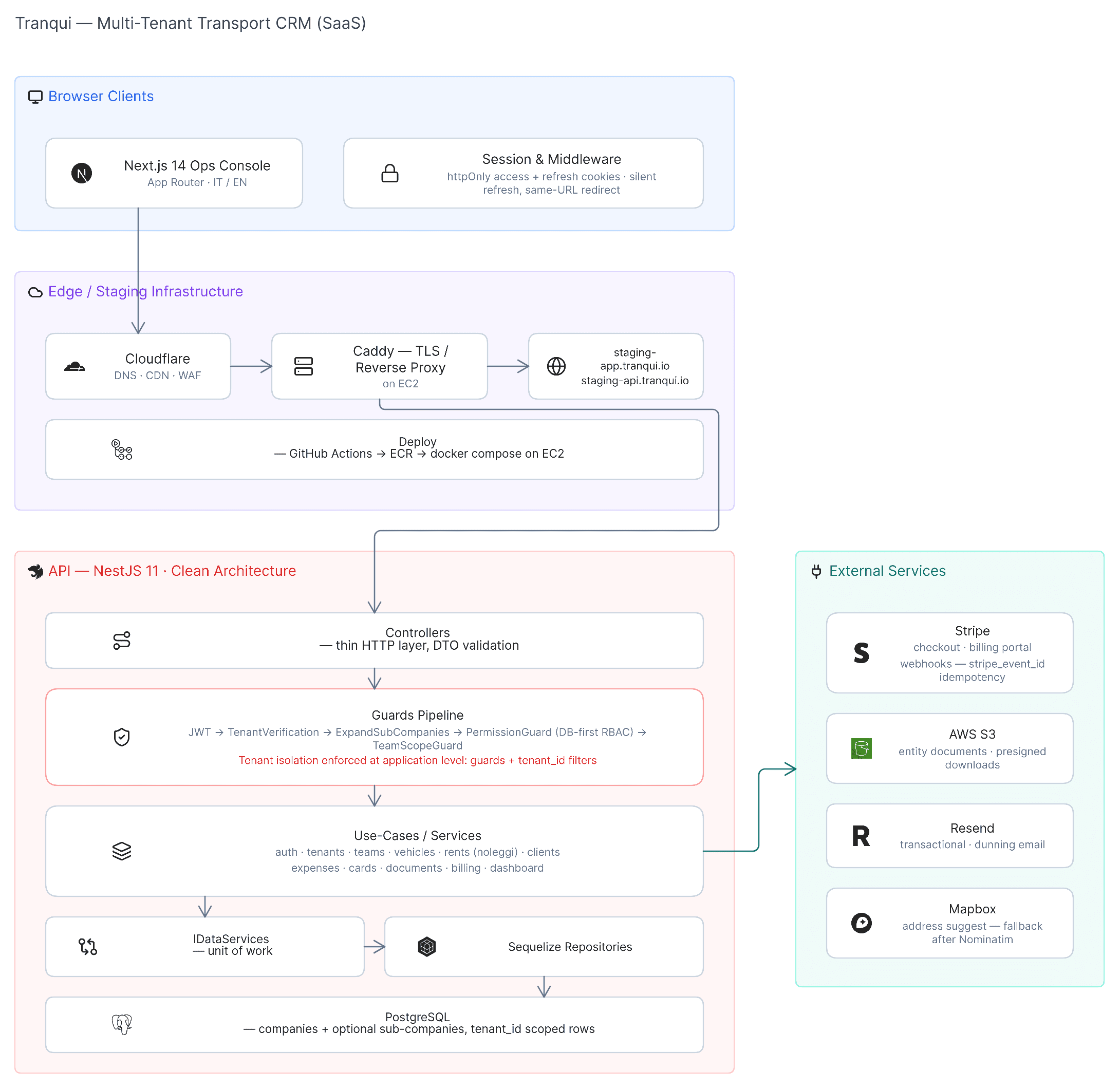

Diagram authored in Eraser — browser → edge/staging → NestJS Clean Architecture → Postgres, with Stripe / S3 / Resend / Mapbox on the side.

Backend layout

Controllers never hide business rules. Use-cases are the product language: auth, tenants, teams, vehicles, insurance, maintenances, clients, expenses, cards, rents, documents, violation notices, presences, dashboard, settings, Stripe.

Frontend layout

Route groups for auth vs dashboard, Italian path aliases where the operators live (veicoli, noleggi, …), and feature modules that match the API language.

Documentation graph

Code trees show where things live. For Tranqui I also kept an Obsidian vault — a linked-note graph of why they live that way: tenancy rules, Stripe idempotency, auth refresh, use-case boundaries, and the decisions that should not evaporate into Slack.

Obsidian fits this shape better than a static wiki: every note can [[wikilink]] the next, the graph view exposes orphans and dense clusters, and markdown stays diffable next to the repos.

Why auto-doc with Obsidian is attractive here. A Transport CRM accumulates product language faster than READMEs keep up. Generating or syncing notes from use-case folders, Swagger, and ADR stubs into an Obsidian vault would keep the graph close to the code: new modules get a seed note, [[links]] surface coupling, and onboarding becomes “open the graph” instead of “ask whoever remembers.” Human editing stays for judgment; automation stays for structure and freshness.

Tenancy and access

Multi-tenancy is a product decision, not a database checkbox. I chose application-level isolation: tenant_id on rows, tenant IDs on the request, and a guard pipeline that fails closed.

Why not lean on RLS alone? Product rules here are richer than “same tenant id” — parent companies expand into sub-companies, supervisors see all teams, drivers do not. Those rules belong next to the use-cases, where they stay testable and explicit.

The access path is layered on purpose:

1. JWT — who is calling
2. Tenant verification — are they allowed in this company (with a subscription-lenient variant where onboarding needs it)
3. Expand sub-companies — parent visibility without duplicating data models
4. @RequirePermission + PermissionGuard — resource/action checks; DB permissions win, JWT is fallback for unseeded tenants
5. TeamScopeGuard — teamIds for membership-scoped reads; admins/supervisors keep a wide lens

// PermissionGuard — DB is source of truth; JWT is cache
const dbPerm = await this.tenantRolePermissions.resolvePermission(
  Number(tu.tenantId),
  null,
  Number(tu.roleId),
  resource,
)

if (dbPerm) {
  // DB record exists — authoritative. No JWT fallback.
  if (allowed) return true
  continue
}

// No DB record yet → fall back to JWT cache
if (hasPermissionFromJwt(tu, resource, action)) return true

That single choice — permissions effective immediately without re-login — is the kind of detail that separates a polished CRM from a brittle admin panel.

Auth at the edge

Tokens are short-lived for a reason. The frontend stores access + refresh in httpOnly cookies (≈15m / 7d), syncs them through a small Next route, and lets middleware refresh before protected pages.

When access is missing or expired, middleware rotates with the refresh token and redirects to the same URL so Server Components never see a half-updated cookie jar. Stateless refresh with rotation keeps stolen access tokens boring and refresh theft detectable.

Billing that survives retries

Stripe will call you more than once. I designed the webhook path around that fact:

• Dedicated raw-body route for signature verification
• Persist the event with createIfNotExists / findOrCreate on stripe_event_id
• If the row already exists → return; never re-run side effects
• Tenant resolved from metadata.tenant_id
• Dunning / subscription mail through Resend when payment fails or resumes

const { created } = await this.dataServices.stripeEvents.createIfNotExists({
  stripe_event_id: event.id,
  type: event.type,
  payload: event as unknown as Record<string, unknown>,
  processed_at: new Date(),
})
if (!created) {
  return
}

Checkout and customer portal sit in the same Stripe use-case family as the webhook — one billing vocabulary across API and UI.

Under the hood

A few more choices that shaped the system:

Tech stack

Open source links

Private product, public org: architecture and shipping cadence stay split (API → staging-api.tranqui.io, app → staging-app.tranqui.io); the public face is the org.

tranqui-org on GitHub

https://github.com/tranqui-org
